Laser Cutting Special medium and high pressure Air Compressor 16-30bar
Model：JG
Data range：0.9-4.0m3/min 16-30bar
1. Specially designed heavy duty compressor host, stable and energy saving
2. According to years of experience in laser machine industry, the water and oil removal device has greatly prolonged the service life of lens and laser head

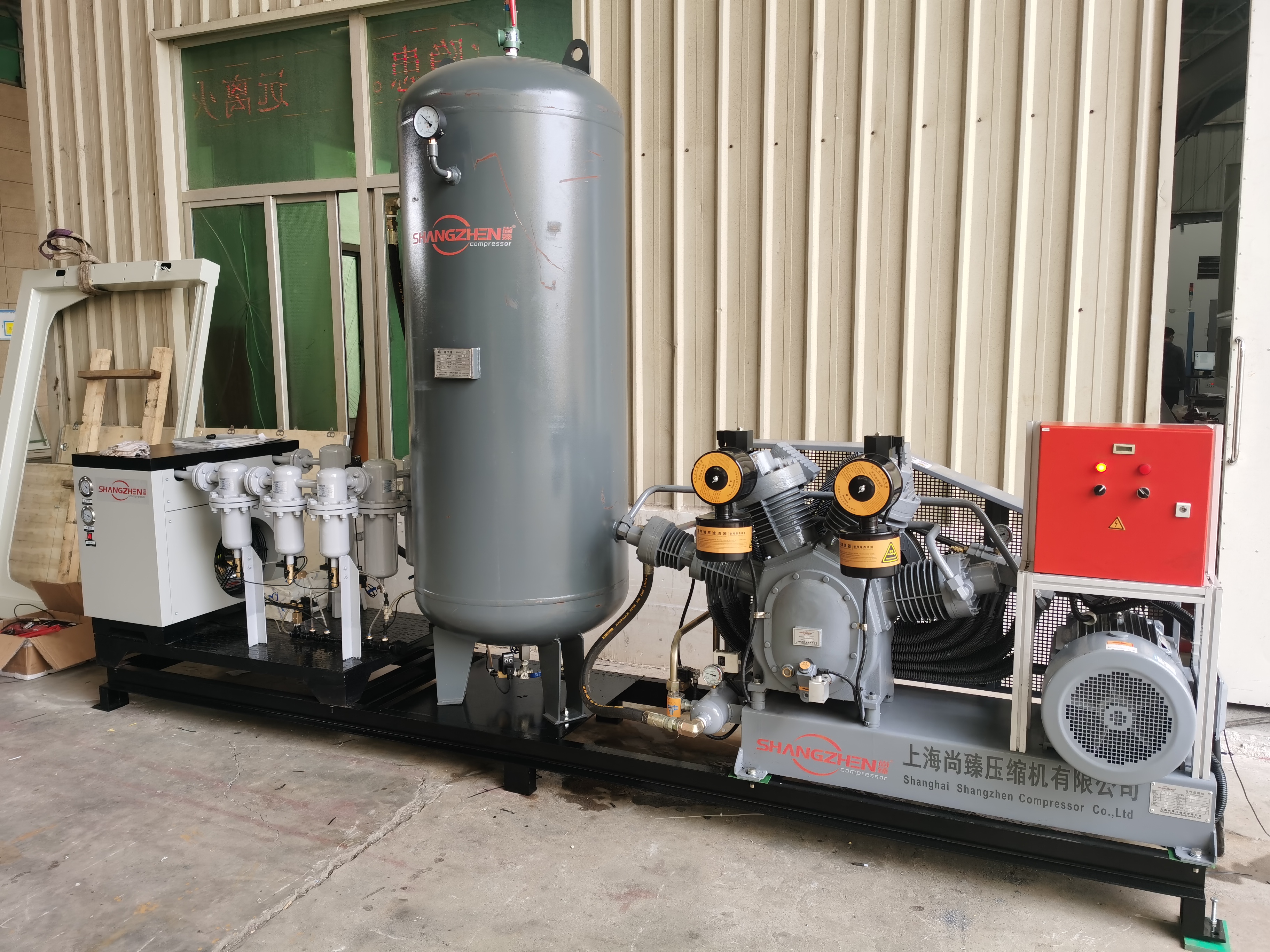

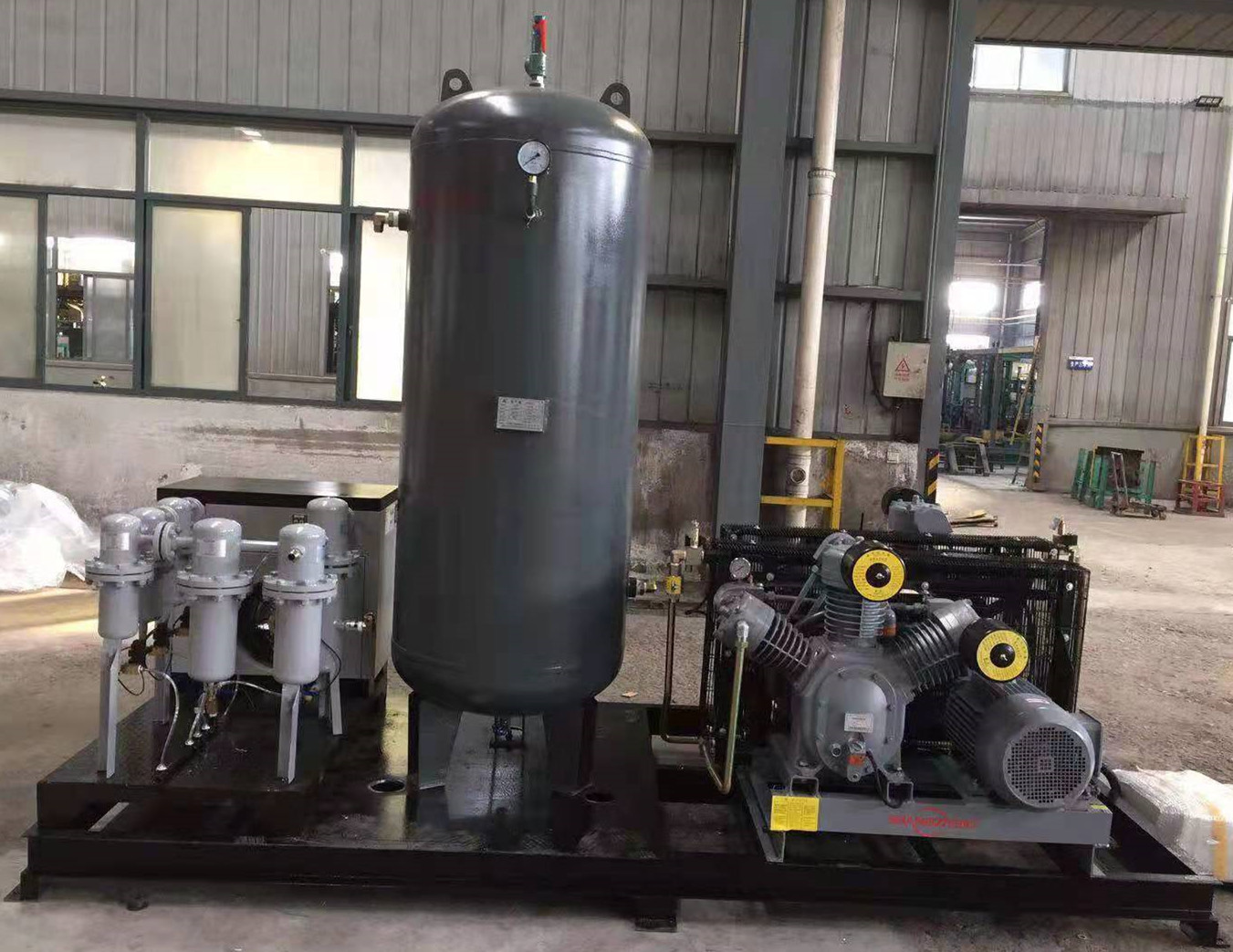

3. Optional integrated skid mounted, easy to install
Laser cutting special medium and high pressure air compressor - Shanghai Shangzhen compressor professional design and manufacture
Technical parameters:
| Model | Pressure | FAD | Motor |
| ZVG-15A-16 | 16bar | 0.9m3/min | 11KW |
| ZVG-20A-16 | 16bar | 1.2m3/min | 15KW |
| ZVG-22A-16 | 16bar | 1.8m3/min | 22KW |
| WM-1.0/30-JG | 30bar | 1.0m3/min | 11KW |
| WM-1.2/30-JG | 30bar | 1.2m3/min | 15KW |
| WM-1.6/30-JG | 30bar | 1.6m3/min | 18.5KW |
| SH-2.0/30-JG | 30bar | 2.0m3/min | 22KW |
| 2-WM-2.4/30-JG | 30bar | 2.4m3/min | 15KW×2 |
| 2-WM-3.2/30-JG | 30bar | 3.2m3/min | 18.5KW×2 |
| 2-SH-4.0/30-JG | 30bar | 4.0m3/min | 22KW×2 |
Shangzhen laser cutting special medium and high pressure air compressor, laser special air compressor, laser cutting medium and high pressure compressor features:
1. Specially designed heavy duty compressor host, stable and energy saving
2. According to years of experience in laser machine industry, the water and oil removal device has greatly prolonged the service life of lens and laser head
3. Optional integrated skid mounted, easy to install
