Air compressor post-processing
Model：SZP

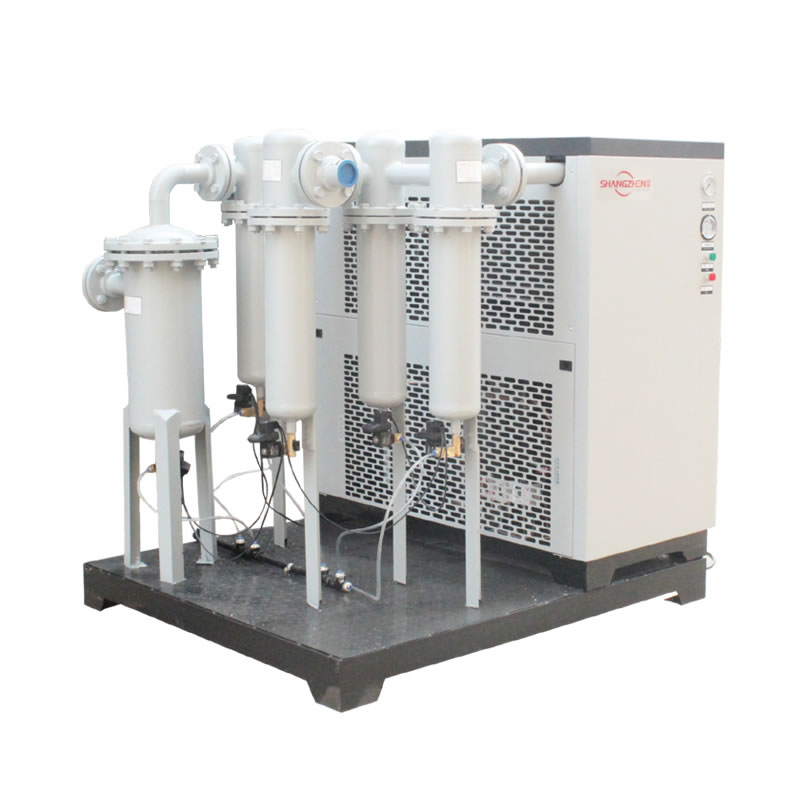

Based on many years service in various industries,we launched a skid-mounted air handling unit which suit to some industries,have the effect of high efficient,steady and easy installation.
market@szcompressor.comMain technical parameter：
Pressure： 1.0-10.0MPa
Pressure consumption：≤0.02MPa
Dew point：2-10℃
Precision： ≤0.01μm
Technical Parameter：
| Model | Pressure MPa |
Inlet Temp ℃ |
Capacity Nm3/min |
Power HP |
Power supply and voltage V/Ph/Hz |
Inlet and outlet size | Cooling type | Note |
| SZP-1/40 | 1.0-10.0 | ≤80 | 1-1.6m3 | 1.0 | 220/1/50 | Rc3/4 ＂ | air cooling | Could skid-mounted with air tank |
| SZP-2/40 | 2-2.6m3 | 1.1 | Rc1＂ | |||||
| SZP-3/40 | 3-3.8m3 | 1.25 | Rc11/2＂ | |||||
| SZP-5/40 | 4.5-5.2m3 | 1.65 | Rc11/2＂ | |||||
| SZP-6/40 | 6-7m3 | 1.8 | Rc11/2＂ | |||||
| SZP-8/40 | 8-9m3 | 2.3 | Rc11/2＂ | |||||
| SZP-10/40 | 10-11m3 | 2.45 | Rc11/2＂ | |||||
| SZP-13/40 | 13-14m3 | 3.0 | Rc2＂ | air cooling and water cooling | ||||
| SZP-15/40 | 15-16m3 | 3.6 | 380/3/50 | Rc2＂ | ||||
| SZP-20/40 | 20-22m3 | 3.6 | DN65Flange | |||||
| SZP-25/40 | 25-28m3 | 4.75 | DN65Flange | |||||
| SZP-30/40 | 30-33m3 | 5.75 | DN65Flange | |||||
| SZP-40/40 | 40-45m3 | 6.9 | DN80Flange | |||||
| SZP-50/40 | 50-55m3 | 8.5 | DN80Flange |
Notes：
1、Could adopt the R407C,R134a environmental refrigerant,need special order
2、Special voltage and Hz could customized.
