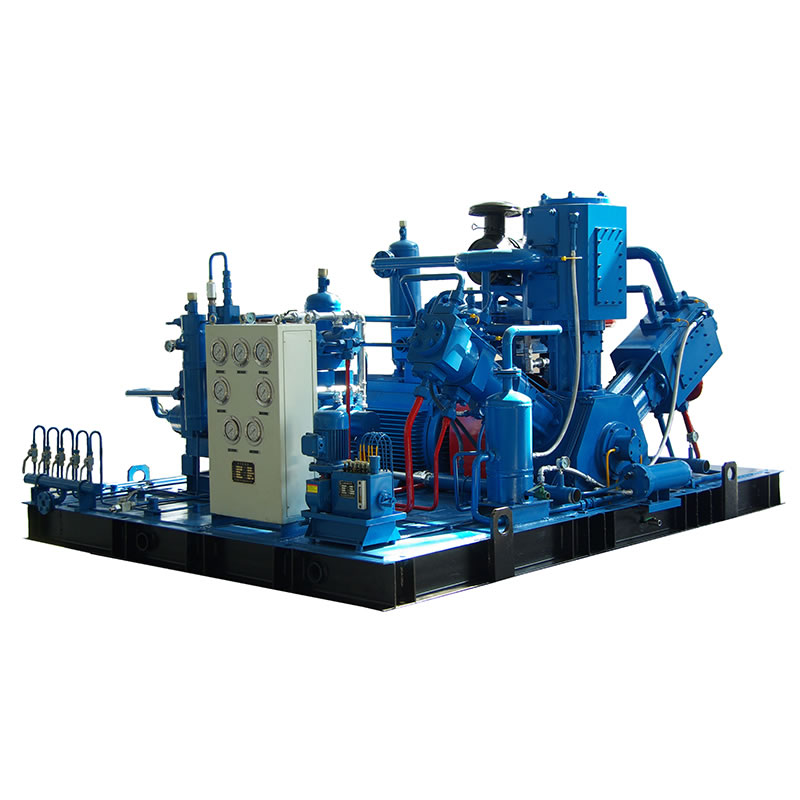

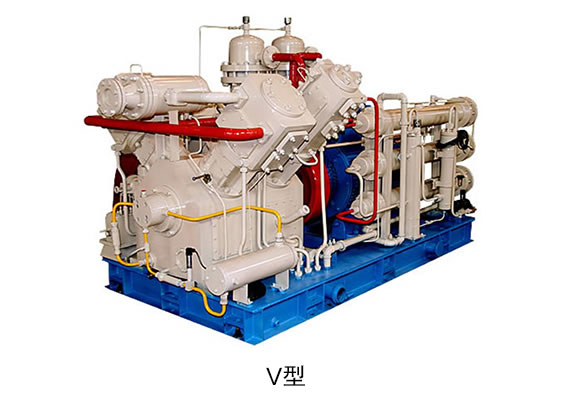

100-400bar High Pressure air compressor 1-12m3/min
Model：SV~SW
Whole Skid-mounted structure
water cooling or mixed cooling
perfect automatic control and automatic protection function
Mainly used in aerospace, submarine inflatable, petroleum, metallurgy, light industry, defense industry, shipbuilding, machinery, research, cylinder testing, product testing, and other areas of high phosphorus.
Product Characteristics:
- Whole Skid-mounted structure
- water cooling or mixed cooling
- motor drive or belt drive
- perfect automatic control and automatic protection function
- Mainly used in aerospace, submarine inflatable, petroleum, metallurgy, light industry, defense industry, shipbuilding, machinery, research, cylinder testing, product testing, and other areas of high phosphorus
- With the characteristics of Compact structure, simple operation, beautiful appearance, easy installation, little overall vibration, high reliability, could completely replace the imported products
- After drying equipment, atmospheric dew point can be reached to 55 degrees Celsius
Technical Parameter：
|
Model |
FAD Nm3/min |
Pressure MPa |
Speed r.p.m |
Size L×W×H mm |
Power KW |
Weight KG |
|
SV-1 |
1.0 |
10-45
|
980 |
1700×1100×1200 |
30 |
1000 |
|
SV-2 |
2.0 |
740 |
2300×1400×1400 |
45 |
3000 |
|
|
SV-3 |
3.0 |
980 |
2400×1500×1500 |
75 |
3000 |
|
|
SW-6 |
6.0 |
740 |
2700×2700×2000 |
110 |
7000 |
|
|
SW-7.5 |
7.5 |
740 |
2700×2700×2000 |
160 |
7000 |
|
|
SW-10 |
10.0 |
740 |
3100×3000×1900 |
200 |
7000 |
|
|
SW-12 |
12.0 |
740 |
3300×3000×2200 |
200 |
10000 |
Notes:
1、Performance parameters measured according to ISO2017,reference conditions:inlet temperature 20℃,inlet pressure 1barA
2、Our company reserves the right to continuing improve the technology,parameter change without prior informed
3、Special models could be customized.
